Ultrasonic Scanner Systems

Eddyfi Technologies

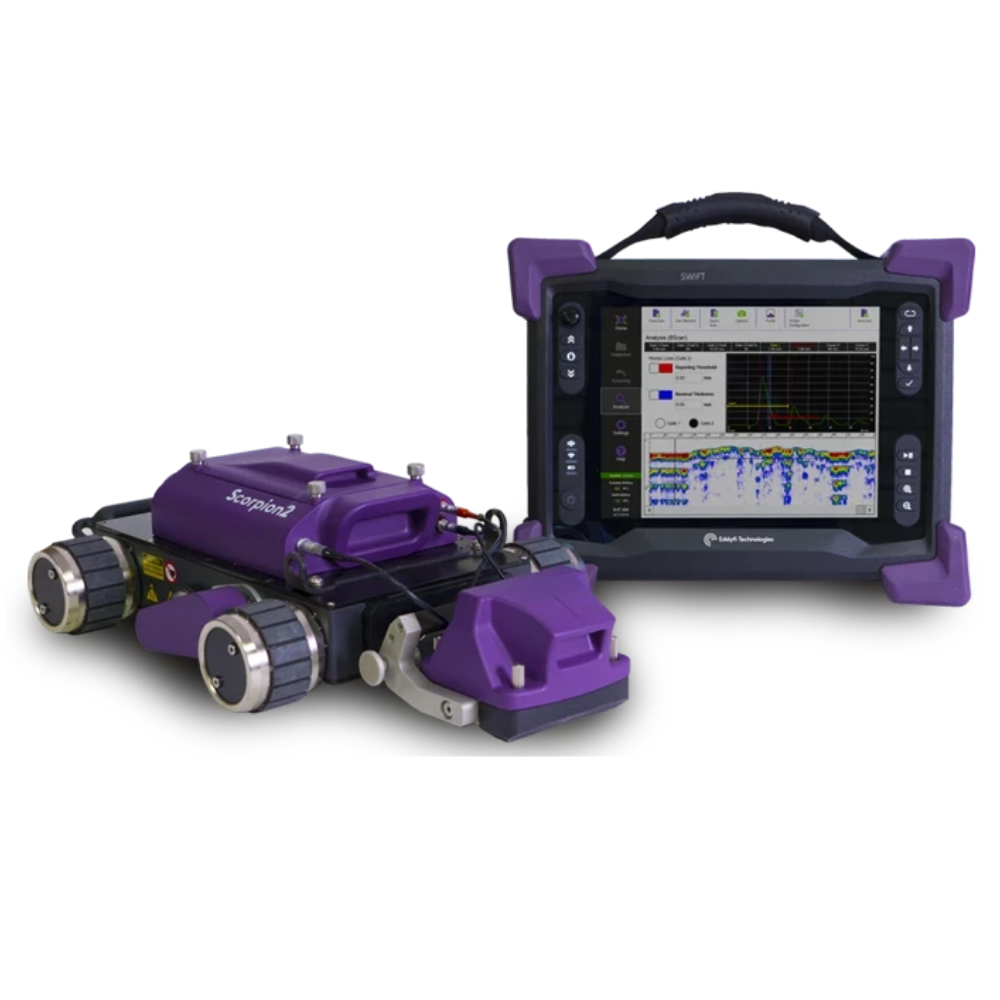

Scorpion2 Ultrasonic Scanner

The Scorpion2 dry coupled remote access ultrasonic crawler system brings major inspection efficiency improvements to above ground ferro-magnetic structures such as storage tanks, vessels and offshore installations.The all-in-one solution has been developed with feedback from Silverwing’s extensive Scorpion user base and support from industry leading robotics researchers at Strathclyde University. Performance advantages include faster data collection, efficient scanning patterns, higher probability of detection and the ability to collect valuable measurements in critical locations enhancing RBI inspection programs.

Details

NDT Systems

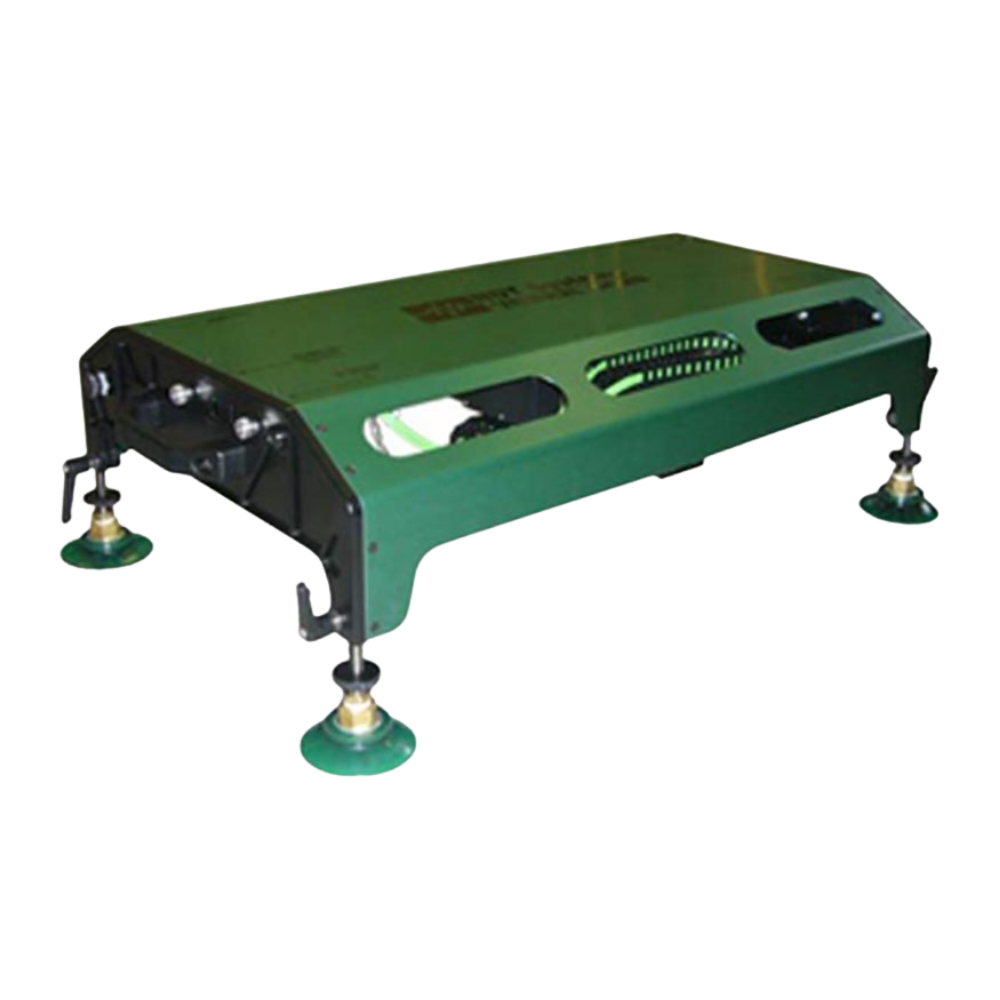

TunnelScan

Powered by the unique Raptor Imaging Flaw Detector, the TunnelScan scanner can be used to generate full-field color C-Scan images of a test object. The TunnelScan is a self-contained, portable and battery operated scanner. A unique high-resolution and high-speed drive enables full-field coverage with a range of probe types. The scanner is designed for use on metal or composite surfaces and also above an immersion tank. The scanner can be easily placed in hard to access areas and fixed by one-touch operation using suction feet and the built-in vacuum pump.

Details

NDT Systems

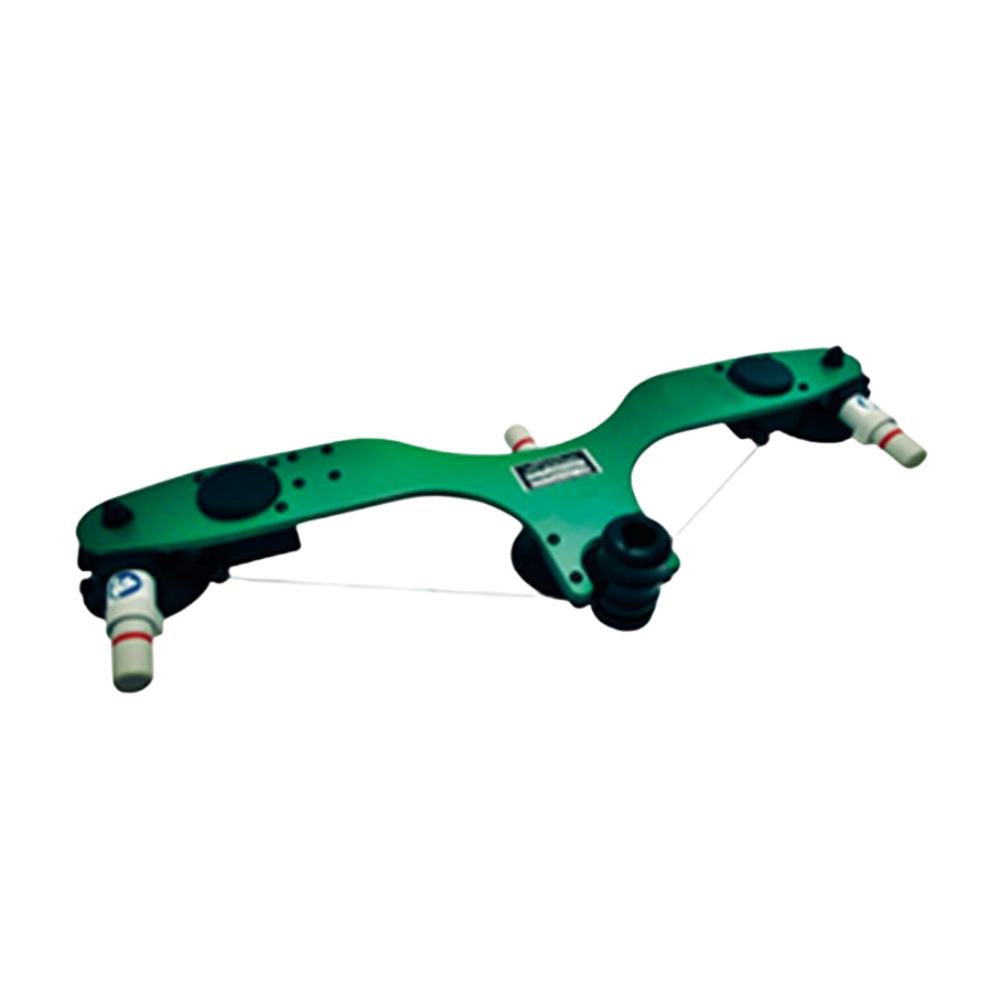

StringScan II

Powered by the unique Raptor Imaging Flaw Detector, the StringScan II can be used to generate full field color C-Scan images of a test object. Ultrasonic thickness measurements and flaw detection are used across many industries including aerospace, oil and gas an power generation for quality control and in-service monitoring. By manually scanning the object surface with a conventional ultrasonic probe, a full-field image of the result can be generated in a plan iew format. The StringScan II allows for simple area scanning of most meterials for a very low price. The aluminium scanner is robust, lightweight and exceptionally portable for field use.

Details

Eddyfi Technologies

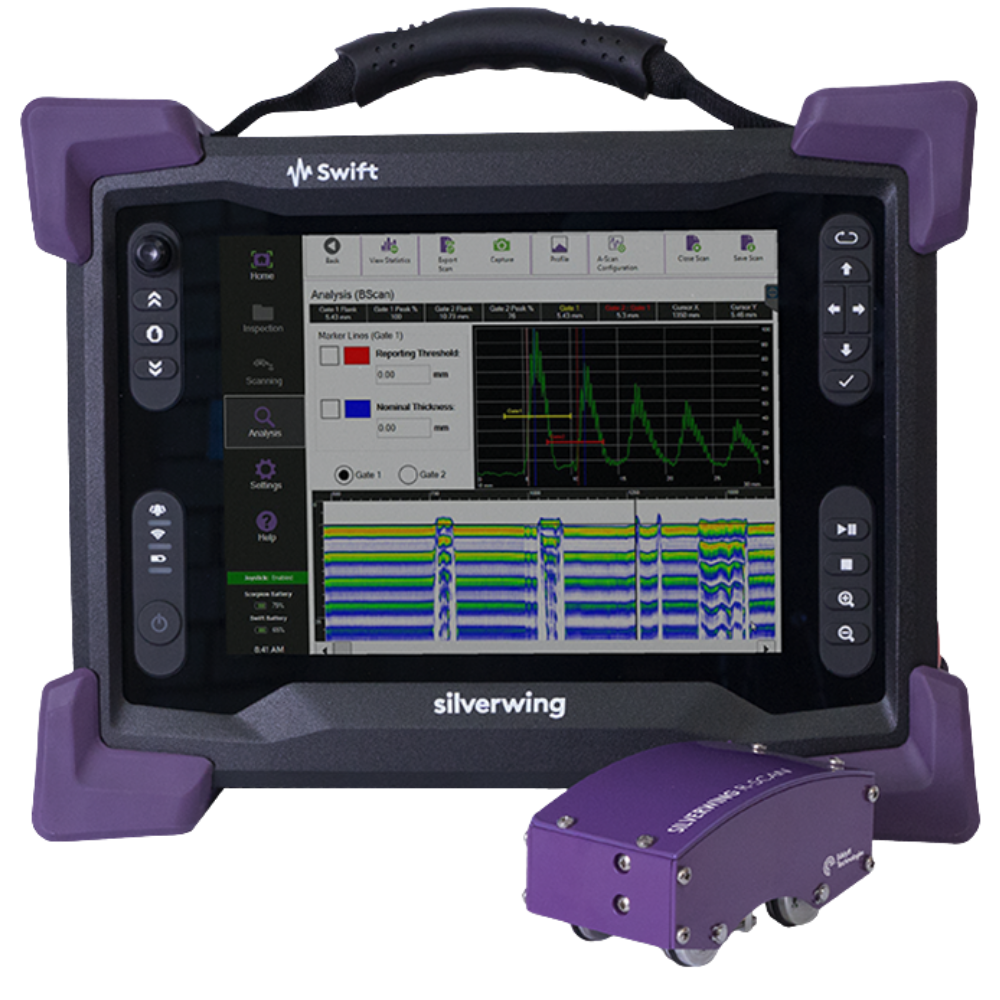

R-Scan Corrosion Scanner

Combining the R-Scan handheld, dry-coupled scanner with the Swift ultrasonic data acquisition instrument delivers a simple to use, battery operated, portable ultrasonic inspection system ideal for application ranging from 50 mm (2 in) up to flat plate. The software is packed with unique and intuitive features all design to improve productivity and user experience. Compared to traditional spot thickness measurement, R-Scan increases the likelihood of detecting corrosion by continuously records thickness measurements as the scanning head is moved over the inspection surface. The captured thickness information is displayed as an A-Scan trace, a digital thickness measurement, an amplitude B-Scan or a simple to understand thickness profile.

Details
